KB0360-S

This is a drying equipment combined with solar energy and heat pump, the heat pump is used as the main power, and the solar energy is used as the auxiliary power. When the sun shines enough, the solar air collector absorbs the heat in the sun to provide free hot air for the drying room, saving electricity. The drying capacity of this product is 300-400kg per batch, and its characteristics are as follows: 1. 220V household electricity, easy to use; 2. No need to install, the bottom pulley is easy to move; 3. The operation is simple, you only need to set the required temperature, humidity and drying time on the panel of the controller; no special person is required to take care of it, and the device will automatically shut down after the drying process is completed; 4. The drying room is a closed space, the whole drying process is dry and pollution-free 5. Energy saving and environmental protection, no waste gas discharge; 6. 60 food-grade stainless steel plates, clean and hygienic；

key word:

food drying machine/vegetable dehydrator

Category:

Solar Dehydrator

Tel：008613713382873
Wechat/Whatsapp: 008613713382873

Email：dana@kboen.com

Message

Description

Product Description

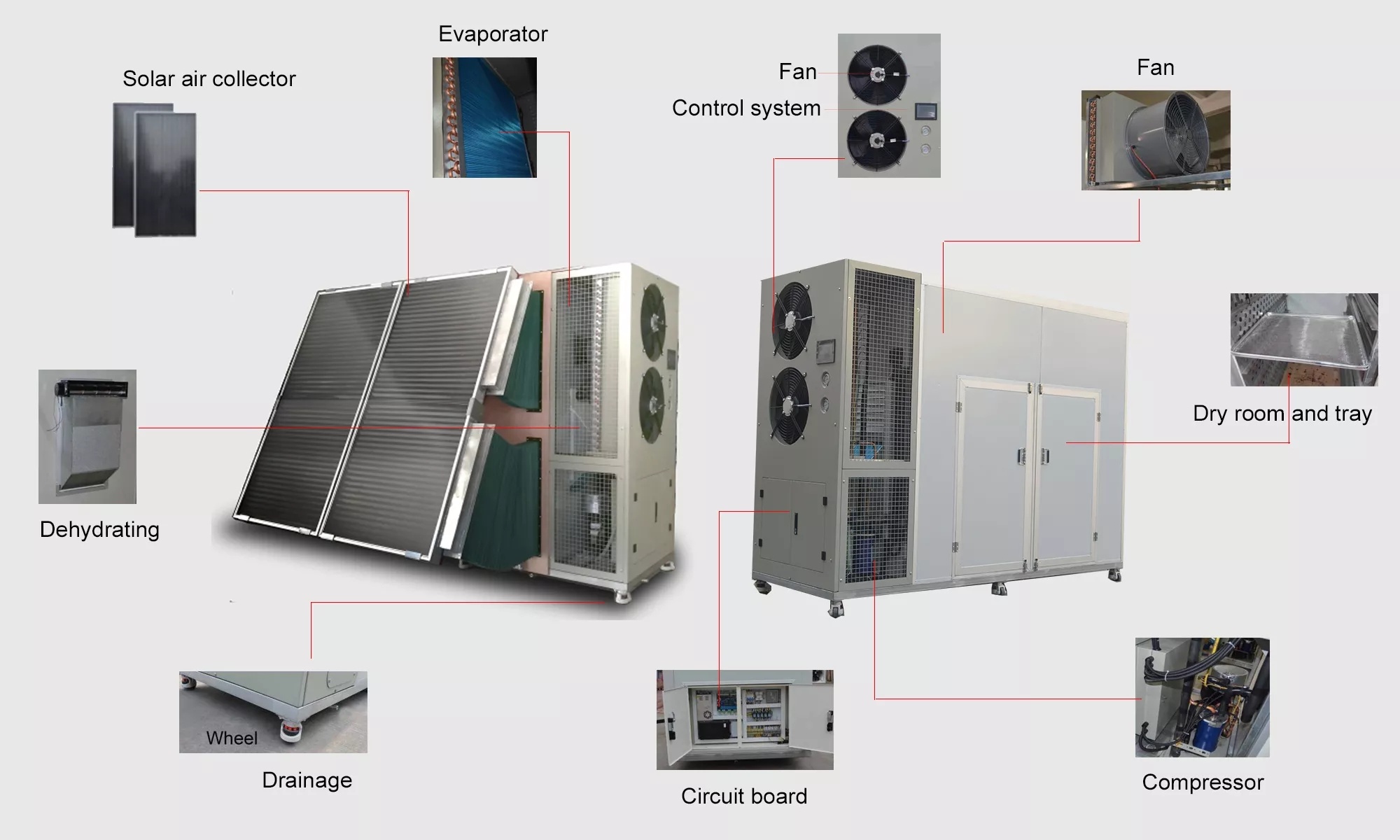

Agriculture heat pump dry system is a compact,high performance dry system.The operating temperature range is between 80°-211°F(27℃-85℃),this system is suitable for families and small factories agricultural products dry.The system include heat pump,control system,fan,dehydration system,dry room and tray,operation voltage is 220v or 110v,lots of place user can use this system directly,don’t worry about the local voltage matching.The system is a complete heat pump dry system too,user needn’t assemble them again,they connect power to dry system can use them directly.

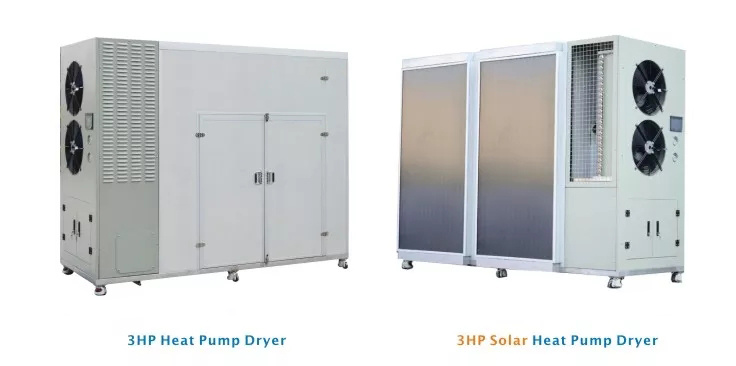

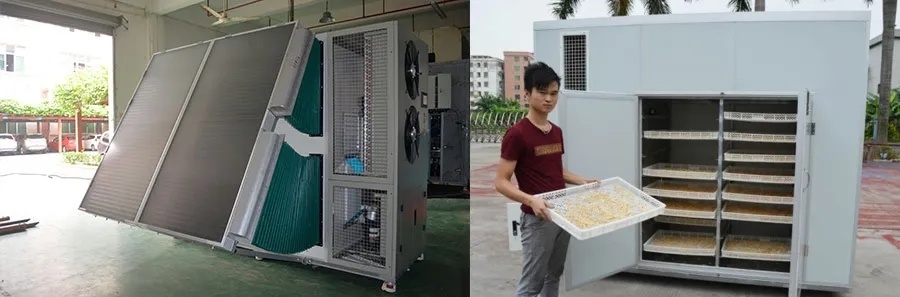

Detailed Images

Advantage

1. Free solar power + Energy-save heat pump power 2. Can save 7.5kwh per hour on working time compare with electric heater. And should save so large power cost if calculate 7.5kwh x 24 hours x 30 days (per month) x 12 (months per year ) 3. Accurate dry procedure to dry different goods with best quality like keep fresh color and others. 4. Easy operation to select touch button with different programs for different goods through Touch Screen. 5. Automatic control for all total dry process. 6.Reinforced strong structure with long time work life and less maintenance. 7.Waste heat recovery and reutilization 8. Environmental protection and decrease Carbon emission with solar and energy-save power.

Product Specification

Technical Parameters
Model	KB0360-1	Outdoor fan volume capacity	6500m³/h
Power supply	220V/50Hz	Fan speed	1450R/min
Ambient temperature	5 to 45℃	Circulation fan volume capacity	5000-8000m³/h
Load capacity	200-300 kg/ per batch	Circulation fan speed	2800R/min
Dryer heating capacity	12KW	Maximum/rated temperature	85/80℃
Rated input power(compressor)	2.4kw	Noise	55dB(A)
Rated input power(outdoor fan)	0.7kw(2pcs 0.35KW)	Chamber dimension(LWH)	171010501320mm
Rated input power (circulating fan)	0.6kw	Insulation thickness	50mm
Total power	3.7kw	Nos. of Trolley	NO
Rated input currents	13A	No of trays	60
The humidification capacity	12KG/H	Tray Dimension	460x640x45
Compressor Model No.	3HP (scroll compressor) ZW34KA-TPFS-582 Copeland	Tray Material	Total stainless steel 304
Refrigerant type	Dryfree special refrigerant	Door Size	1400*1310mm
Refrigerant charge	3.5kg	Nos. of Doors	2
Evaporator	Copper tube, Aluminum fins – Yellow anticorrosive material	Exhaust maximum temperature	115℃
Condenser	Copper tube, Aluminum fins – Yellow anticorrosive material	Exhaust pressure	≤2.35Mpa
Outdoor fan Qty.	2	Return air pressure	≤0.03Mpa
Net weight	700kg	Application type	Indoor & Outdoor

Application

Widely used to drying fruit,vegetable,herbs,meat,seafood,etc.Such as litchi,honeysuckle,daylily,beef jerky,mushrooms,blueberry,

medlar,jujube,walnut,plum,tea,apricot,raisin,bacon,suasage,small shrimp,rice,etc.

Case Show

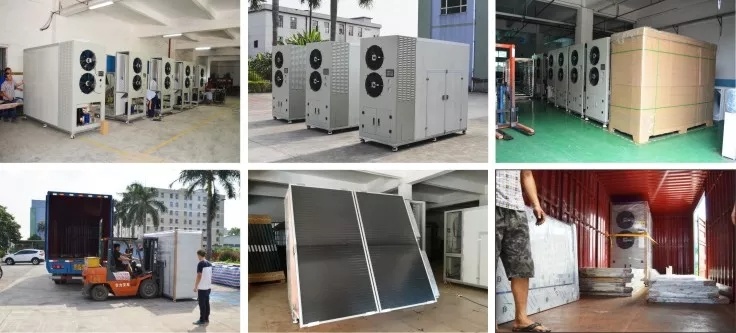

Packing&Shipping
