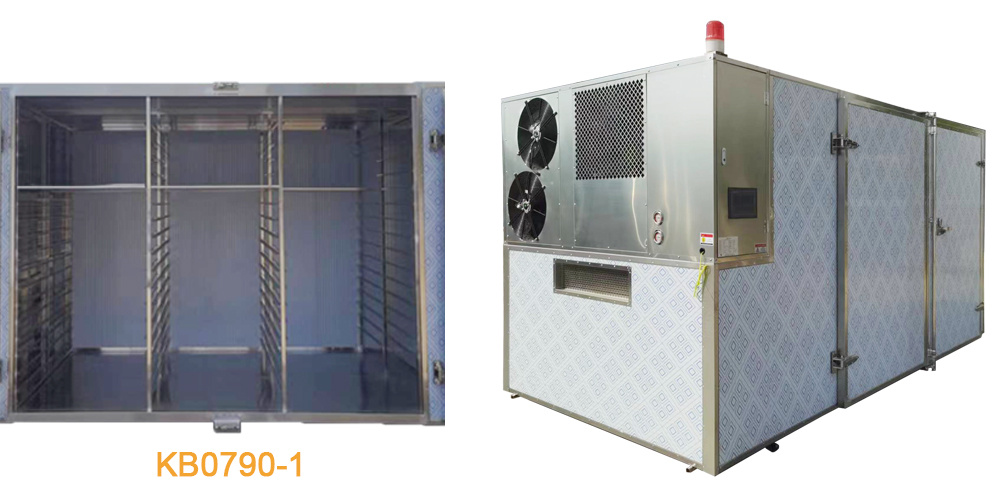

KB0790-1

The small integrated heat pump dryer is an integrated dryer that "integrates" the drying room and the heat pump unit together Multiple pulleys are installed at the bottom of the dryer, which is easy to move, occupies a small area and is easy to operate.The integrated heat pump dryer adopts PLC programmable control mode, which can set different drying curves, automatically control temperature and humidity, precise control, simple operation, with power-off memory function,one-key setting, to achieve fully telligent drying .Customers do not need to install, plug-in can be used immediately, simple operation, convenient maintenance, and are loved by many enterprise farmers.

key word:

fruit drying machine/food drying machine

Category:

Commercial Dehytrator

Tel：008613713382873
Wechat/Whatsapp: 008613713382873

Email：dana@kboen.com

Message

Description

Product Description

The small integrated heat pump dryer is an integrated dryer that "integrates" the drying room and the heat pump unit together Multiple pulleys are installed at the bottom of the dryer, which is easy to move, occupies a small area and is easy to operate.The integrated heat pump dryer adopts PLC programmable control mode, which can set different drying curves, automatically control temperature and humidity, precise control, simple operation, with power-off memory function,one-key setting, to achieve fully telligent drying .Customers do not need to install, plug-in can be used immediately, simple operation, convenient maintenance, and are loved by many enterprise farmers.

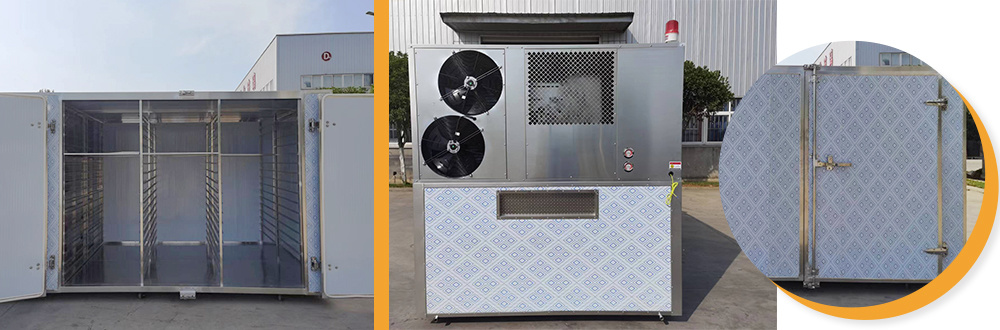

Detailed Images



Advantage

1. The industry's first patented technology, an intelligent heat pump drying equipment integrating drying, dehumidification and fresh air ventilation.

2. Fully automatic control of temperature and humidity, no need for manual guards in the drying process,saving labor and labor intensity, and greatly reducing production costs.

3. The professional dryer control system can accurately control the temperature and humidity, maintain the original fragrance of the material, uniform drying temperature and humidity, and the dried material is of good quality and beautiful color.

4.  No pollutants are discharged during the drying process, which is safe, energy-saving and environ mentally friendly.

5.  Energy saving and power saving, all-in-one design is easy to operate, easy to move, 380V house hold  power supply, can be used immediately after power on.

Product specification

Item Description Item Description
MODEL KB0790-1 Applicable ambient temperature -5-45°C
Rated heating capacity 20.5kw Noise <=72dba
Circulating air volume  inthe drying room 14000m3/h Against electric shock grade Class I
Rated Voltage 380V Waterproofing grade IPX4
Rated frequency 50HZ Weight 450KG
Rated current 12.5A Size/mm 3800*2135*2110
Rated power 6. 5KW Refrigerant refrigerant mixture
Auiliary electric heating power 9KW Refrigerant charge quantity 6800g
Max imum power 15. 5KW Number of layers 15 layers
Maximum current 39A Size of trays 0.8*1m
Temperature of air out 70-75°C Number of trays 90pcs

Application

Widely used to drying fruit,vegetable,herbs,meat,seafood,etc.Such as litchi,honeysuckle,daylily,beef jerky,mushrooms,blueberry,

medlar,jujube,walnut,plum,tea,apricot,raisin,bacon,suasage,small shrimp,rice,etc.
