KB0360-1

This heat pump dryer is the most power cost saving drying machine with higher performance and 24 hours constant work. With 60 pieces of stainless steel trays, it can dry 200-300kg more or less with one batch.It is very easy to operate the machine through select dry button on Touch Screen. And accurate controlprogram to assure best dried quality for final dried goods. Working stable and automatically for dry process. Reinforced strong structure assures long working life with less maintenance.It is used popular for many factories, farms, private business, startup companies, etc, to save more powercost and have best quality dried goods to sell on market and grow their business.Multifuctional drying procedures to dry different goods, such as fruits, fish， vergetables, nuts, foods,etc.Easy to be moved to everywhere with strong wheels.

key word:

food dehydrator/vegetable drying machine

Category:

Commercial Dehytrator

Tel：008613713382873
Wechat/Whatsapp: 008613713382873

Email：dana@kboen.com

Message

Description

Product Description

Agriculture heat pump dry system is a compact,high performance dry system.The operating temperature range is between 80°-211°F(27℃-85℃),this system is suitable for families and small factories agricultural products dry.The system include heat pump,control system,fan,dehydration system,dry room and tray,operation voltage is 220v or 110v,lots of place user can use this system directly,don’t worry about the local voltage matching.The system is a complete heat pump dry system
too,user needn’t assemble them again,they connect power to dry system can use them directly.

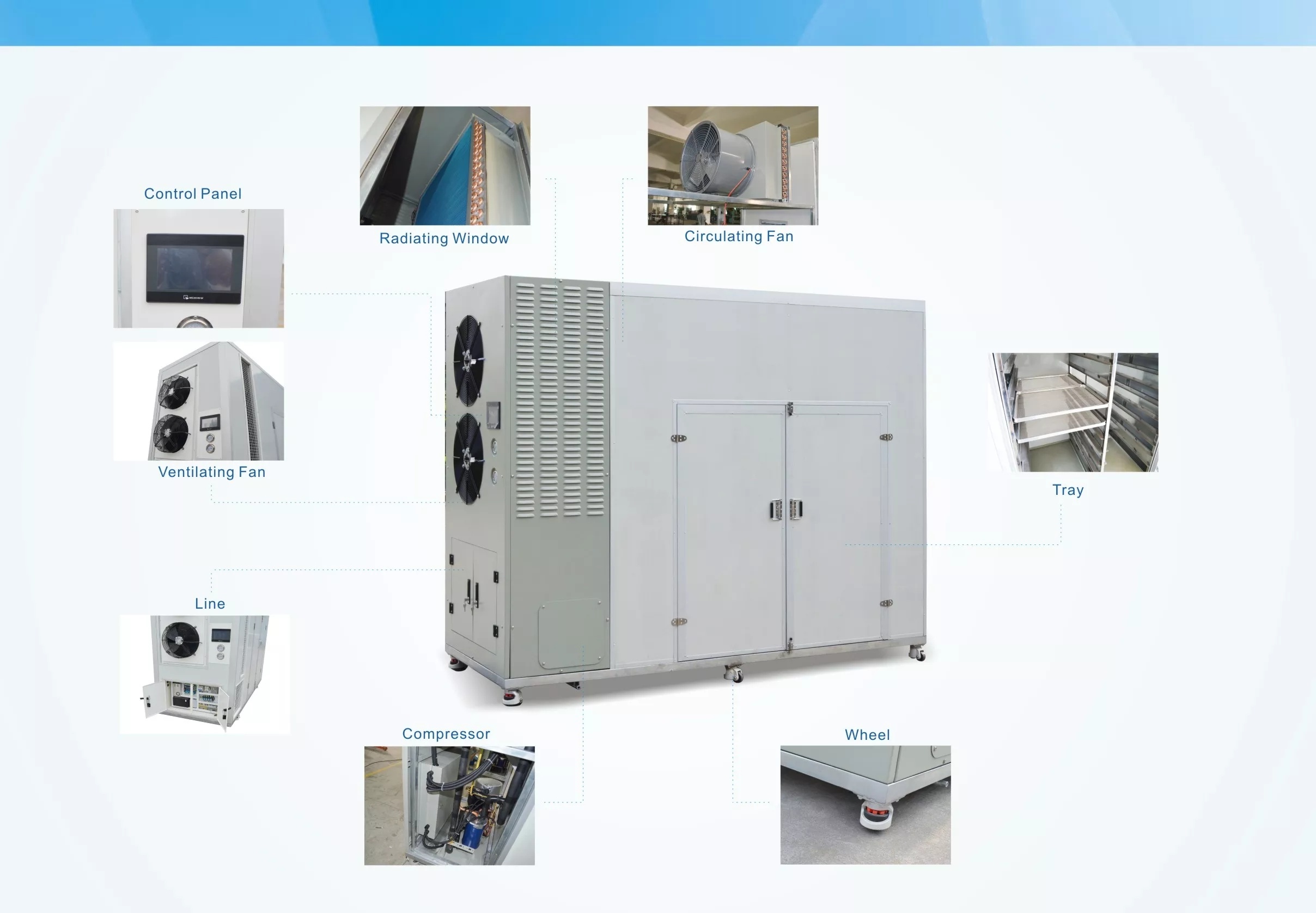

Detailed Images

Advantage

1. Free solar power + Energy-save heat pump power 2. Can save 7.5kwh per hour on working time compare with electric heater. And should save so large power cost if calculate 7.5kwh x 24 hours x 30 days (per month) x 12 (months per year ) 3. Accurate dry procedure to dry different goods with best quality like keep fresh color and others. 4. Easy operation to select touch button with different programs for different goods through Touch Screen. 5. Automatic control for all total dry process. 6.Reinforced strong structure with long time work life and less maintenance. 7.Waste heat recovery and reutilization 8. Environmental protection and decrease Carbon emission with solar and energy-save power.

Product Specification

Technical Parameters
Model	KB0360-1	Outdoor fan volume capacity	6500m³/h
Power supply	220V/50Hz	Fan speed	1450R/min
Ambient temperature	5 to 45℃	Circulation fan volume capacity	5000-8000m³/h
Load capacity	200-300 kg/ per batch	Circulation fan speed	2800R/min
Dryer heating capacity	12KW	Maximum/rated temperature	85/80℃
Rated input power(compressor)	2.4kw	Noise	55dB(A)
Rated input power(outdoor fan)	0.7kw(2pcs 0.35KW)	Chamber dimension(LWH)	171010501320mm
Rated input power (circulating fan)	0.6kw	Insulation thickness	50mm
Total power	3.7kw	Nos. of Trolley	NO
Rated input currents	13A	No of trays	60
The humidification capacity	12KG/H	Tray Dimension	460x640x45
Compressor Model No.	3HP (scroll compressor) ZW34KA-TPFS-582 Copeland	Tray Material	Total stainless steel 304
Refrigerant type	Dryfree special refrigerant	Door Size	1400*1310mm
Refrigerant charge	3.5kg	Nos. of Doors	2
Evaporator	Copper tube, Aluminum fins – Yellow anticorrosive material	Exhaust maximum temperature	115℃
Condenser	Copper tube, Aluminum fins – Yellow anticorrosive material	Exhaust pressure	≤2.35Mpa
Outdoor fan Qty.	2	Return air pressure	≤0.03Mpa
Net weight	700kg	Application type	Indoor & Outdoor

Application

Widely used to drying fruit,vegetable,herbs,meat,seafood,etc.Such as litchi,honeysuckle,daylily,beef jerky,mushrooms,blueberry,

medlar,jujube,walnut,plum,tea,apricot,raisin,bacon,suasage,small shrimp,rice,etc.
